Panel Fencing

Panel Fencing

Cyclone offer a full range of panel fencing suitable for all applications.

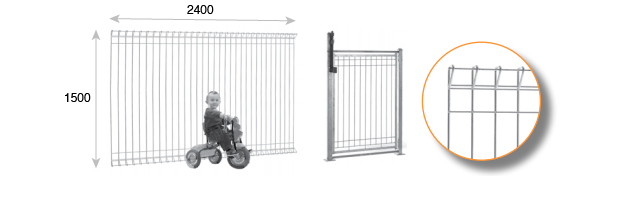

Triangle Pre-school Panel (Top & Bottom)

GALVANISED OR POWDER COATED FINISH

Galvanised
Cyclone Pre-School Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.

Powder coated (over galvanised coating)
All Cyclone Fence components can be powder coated and are available in either Hawthorn Green or Black Satin.

IMPORTANT: In coastal environments double powder coating is recommended to maintain a long term quality coating appearance. (Additional charge).

Fittings: Nuts, clips and bolts supplied with panels and posts.

Size Range Available:

Description Height (mm) Length (mm) Diameter (mm)
Panels 1500 2400
Posts - no base 2200   65mm square
Posts - with base 1600   65mm square

Gate Pack (includes posts & lockable magna latch). 930mm opening between posts.

Vertical Wire Spacing (mm) Wire Diameter - Horizontal (mm) Wire Diameter - Vertical (mm
7 6.3 7.5

Triangle Residential Panel (Top & Bottom)



GALVANISED OR POWDER COATED FINISH

MADE TO ORDER

Galvanised
Cyclone Residential Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.

Powder coated (over galvanised coating)
All Cyclone Fence components can be powder coated and are available in either Hawthorn Green or Black Satin.

IMPORTANT: In coastal environments double powder coating is recommended to maintain a long term quality coating appearance. (Additional charge).

Fittings: Nuts, clips and bolts supplied with panels and posts.

Size Range Available:

Description Height (mm) Length (mm) Diameter (mm)
Panels 900 2400
Posts - no base 1600   50mm
Posts - with base 1000   50mm square

Gate Pack (includes posts & D latch). 930mm opening between posts.

Vertical Wire Spacing (mm) Wire Diameter - Horizontal (mm) Wire Diameter - Vertical (mm)
75 5.3 5.3

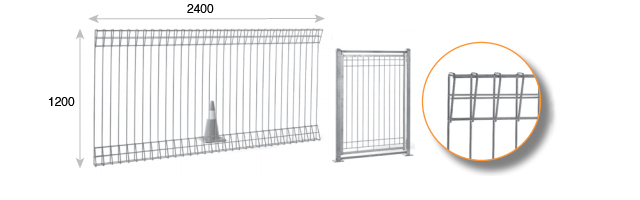

Triangle Motorway Panel (Top & Bottom)

GALVANISED OR POWDER COATED FINISH

Galvanised
Cyclone Motorway Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.

Powder coated (over galvanised coating)
All Cyclone Fence components can be powder coated and are available in either Hawthorn Green or Black Satin.

IMPORTANT: In coastal environments double powder coating is recommended to maintain a long term quality coating appearance. (Additional charge).

Fittings: Nuts, clips and bolts supplied with panels and posts

Description Height (mm) Length (mm) Diameter (mm)
Panels 1200 2400
Posts - no base 2000   50mm square
Posts - with base 1300   50mm square

Gate Pack to suit

Vertical Wire Spacing (mm) Wire Diameter - Horizontal (mm) Wire Diameter - Vertical (mm)
75 6.3 7.5

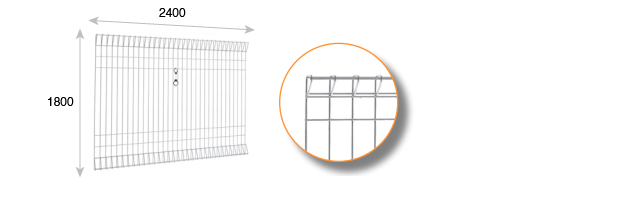

Triangle Security Panel (Top & Bottom)

GALVANISED OR POWDER COATED FINISH

Galvanised
Cyclone Security Fencing panels, poles and all fittings are manufactured using high quality materials and finished with a hot dip galvanised coating to provide users with excellent prolonged life characteristics.

Powder coated (over galvanised coating)
All Cyclone Fence components can be powder coated and are available in either Hawthorn Green or Black Satin.

IMPORTANT: In coastal environments double powder coating is recommended to maintain a long term quality coating appearance. (Additional charge).

Fittings: Nuts, clips and bolts supplied with panels and posts

Size Range Available:

Description Height (mm) Length (mm) Diameter (mm)
Panels 1800 / 2100 2400
Posts - no base 2665   65mm square
Posts - with base 1900   65mm square
Vertical Wire Spacing (mm) Wire Diameter - Horizontal (mm) Wire Diameter - Vertical (mm)
75 6.3 7.5
